Relay Tester

KEEP YOUR AUTOMOTIVE REMOVED IN CHECK!

Can't find the information or condition of your electrical relay. You want to stop your car's relay from going kaput without any warnings? Relay tester is the best option!

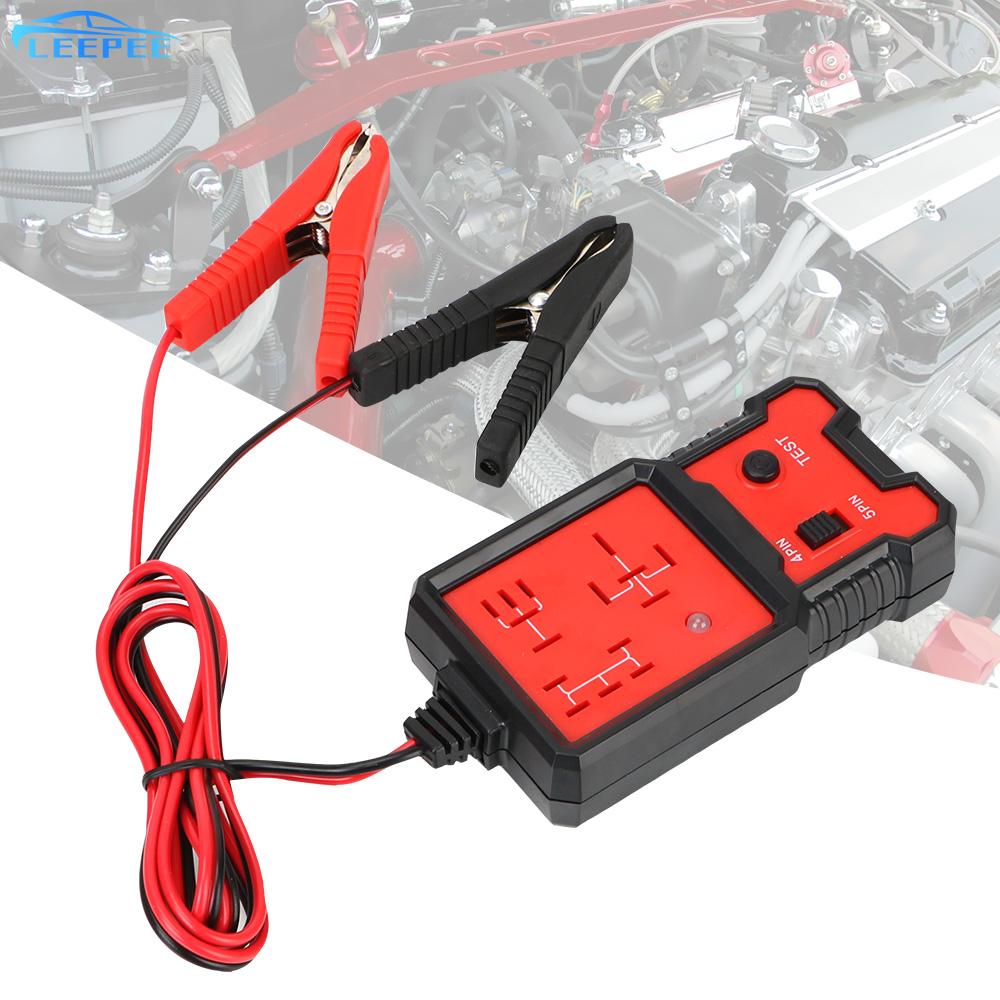

Relay tester can accept three different types of relay pins. The tester can be used for relay switching with 4, 5, or 6 pins.

This tool is quick and easy to check the status of automotive relays. The red LED will be lit if the relay test is abnormal. If it is normal, the LED will be lit.

FEATURES-:

Three different types of relay pins (four-pin/5-pin switching).

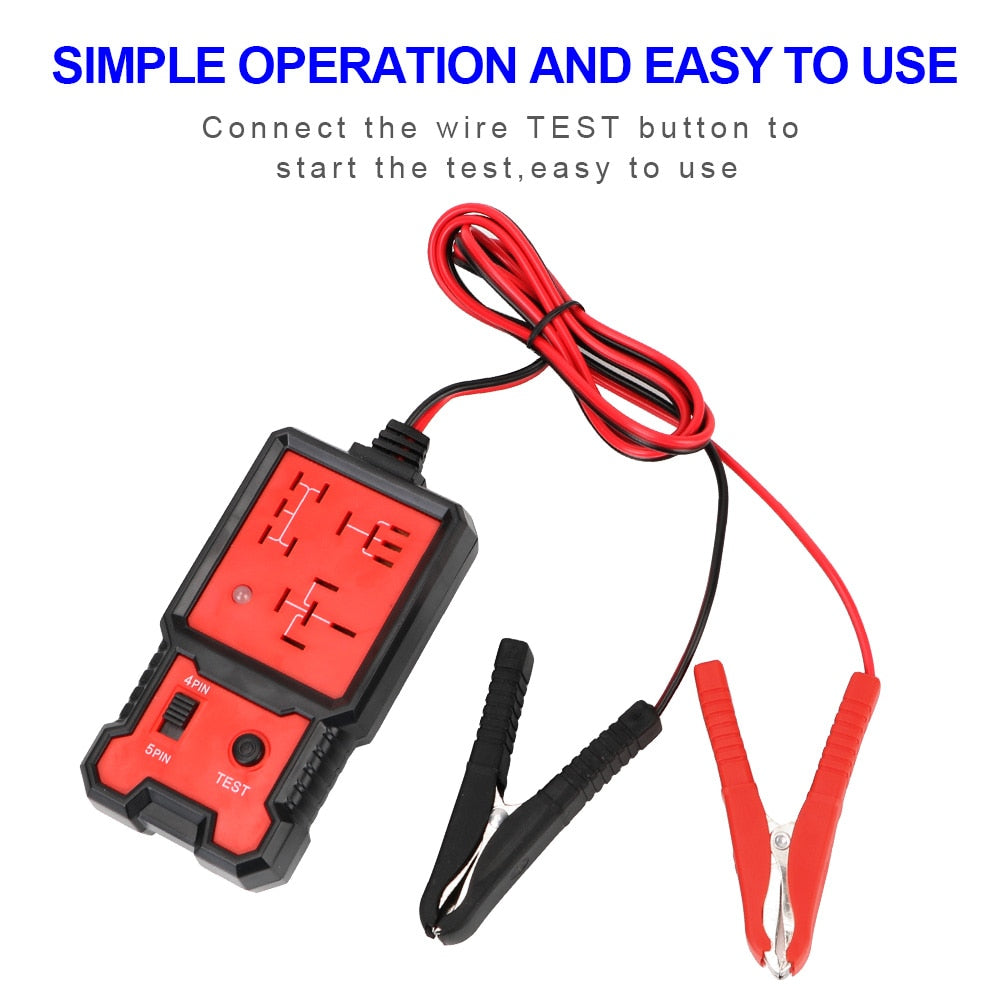

To start the test, connect the wire to the car battery.

The relay coil can be connected to the car battery (11V-15V), so the detector can check the relay contact function.

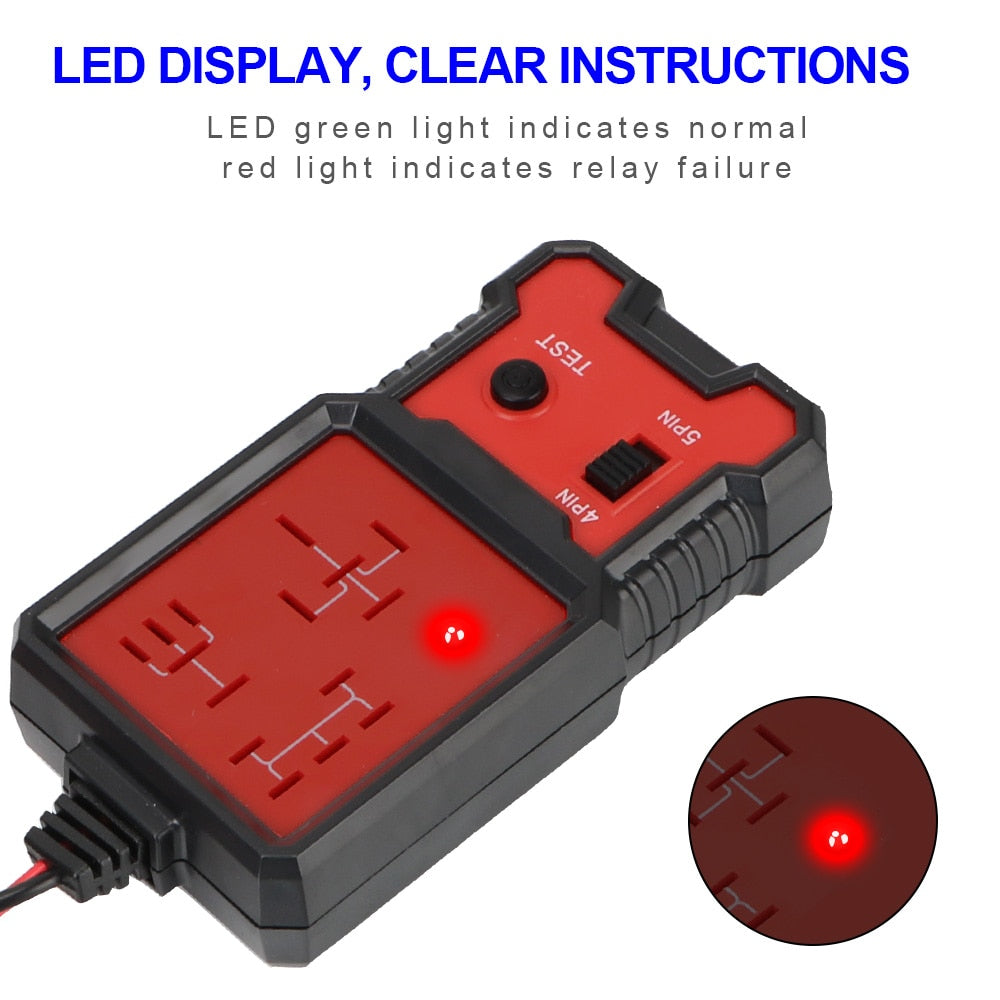

Clear instructions and LED display. LED green light indicates normal, LED red light indicates failure.

Observe contact data, closure times, relay inertia, and other information at each stage.

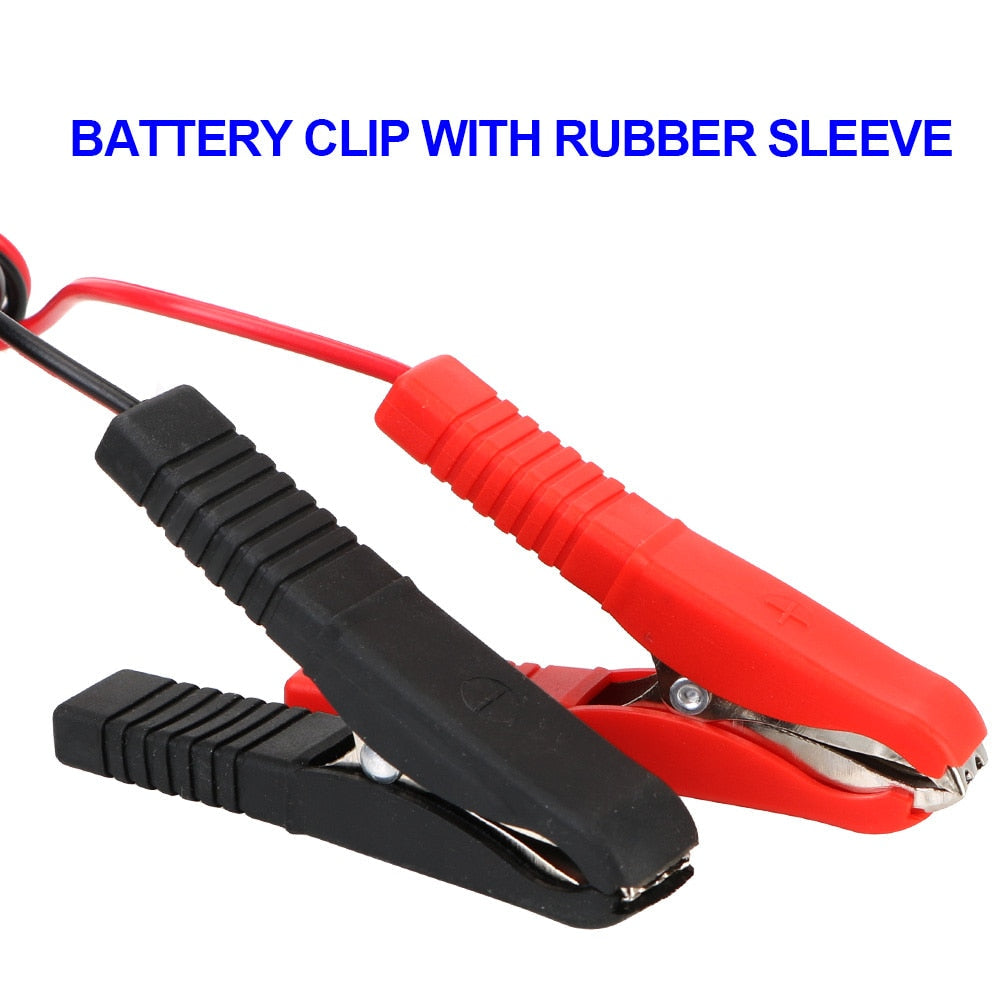

Safe to use, comes with a rubber-sleeved clip for your battery.

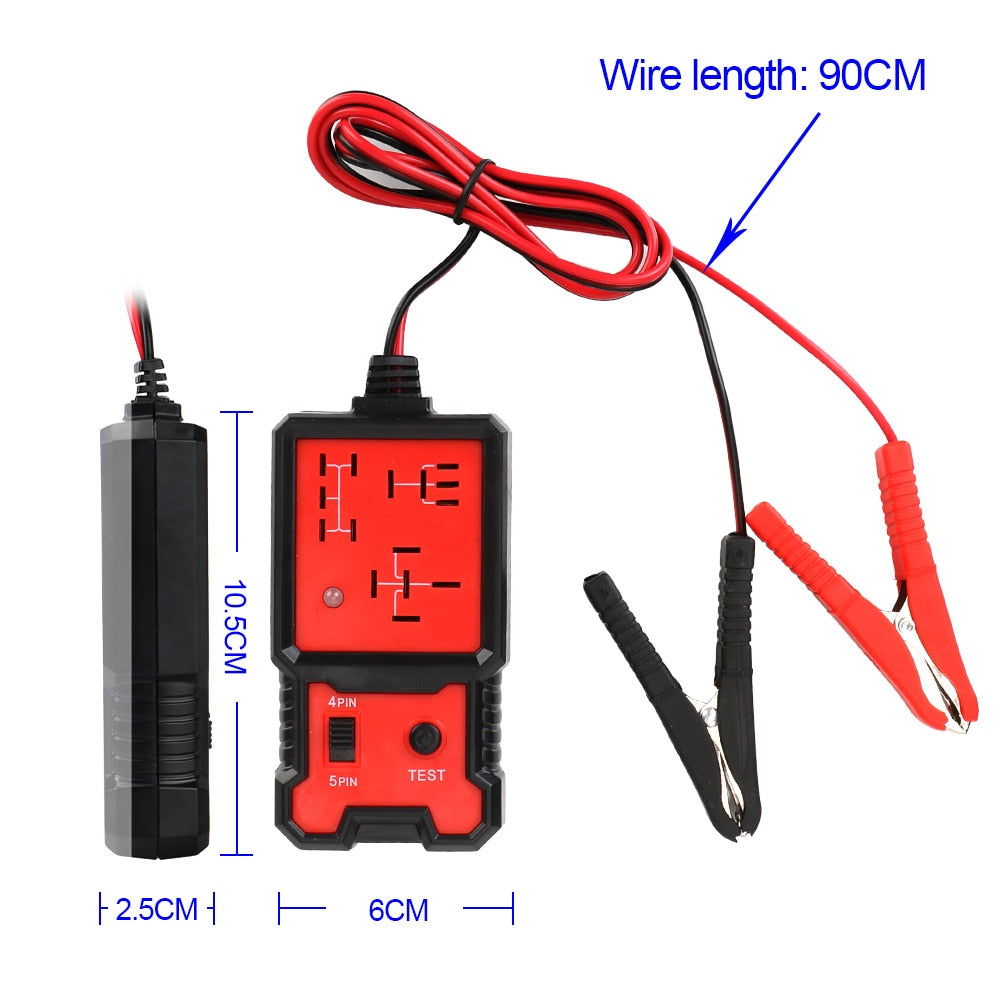

Portable, compact size and lightweight

ntroduction:

• CNBJ-707 is a quick go/no-go tester relays that provides with indication of the general health and functioning of the most common Automotive relays. Tester will check for proper functioning of the relay contacts by connecting the car battery (11V--15V) to the relay coil. Tester will watch the pin configuration,the time to contacts closure and opening, consistency of the relay during each test session, Tester will light the GREEN LED if all passed during the test session,if not light the RED LED.

Introduction:

• 1. Connect the power leads to the car battery --black alligator clip to negative terminal, red alligator clip to positive terminal.
• 2. Tester is powered up when the LED illuminates in RED.
• 3. Check the relay before plugging into the tester. If it's a 4 pin relay,select"4 pin" on the tester.If it's a 5 pin relay, select"5 pin"on the tester.
• 4. Plug in the relay into one of the three receptacles.
• 5. Press the "TEST" button.
• 6. Tester will check the pin configuration of the unknown relay. Tester will light the RED LED if the unkonwn relay is not the same to the most of common automotive relaysor the pin of the unknown relay is destroyed.
• 7.Tester will open and close the relay 10 times for testing the time to contacts closure and opening if the pin configuration of the relay is right. Tester will light the RED LED immediately if the time is overtime.
• 8. Tester will check the consistency of the relay after testing the time to contacts closure and opening ten times. Tester will light the GREEN LED if the test passed, if not light the RED LED.
• 9. Disconnect power leads from the car battery and remove relay from the tester.

 Attention:

• 1. The car battery must be 12V battery, and the voltage of the battery is among 11V-15V.
• 2. Ideal for coil resistance above 20 ohms.

Package Included:

• 1 x Car Relay Tester
